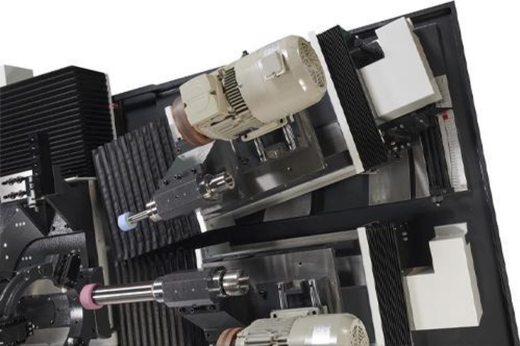

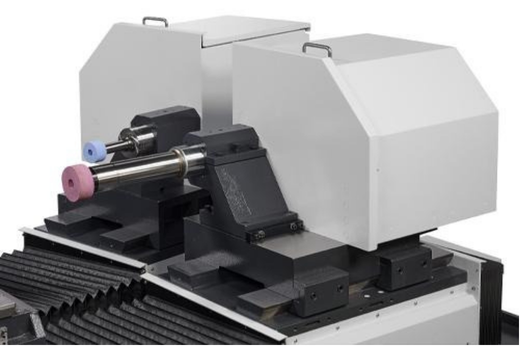

The KG-600SR CNC Steady Rest Internal Compound Grinding Machine is designed for precision grinding of large, long, and heavy workpieces. Equipped with dual grinding wheel spindles and a center frame assembly, it delivers excellent stability and flexibility for grinding depths of up to 400 mm. The manual tailstock slide with air-cushion design allows flexible positioning according to workpiece length, while the independently adjustable Y-axis angle accommodates different taper angles for versatile grinding applications.
Key Features
- Rigid roller type linear way, four linear ways with 12 blocks to make sure axial rigidity and stability.
- With high rigidity A2-6 taper spindle. This spindle provides excellent radial rigidity, stable thermal, minimum heat deformation, and high dynamic accuracy to guarantee absolutely grinding quality.
- Air floating sliding design, easy to move workhead upon length of workpeices.

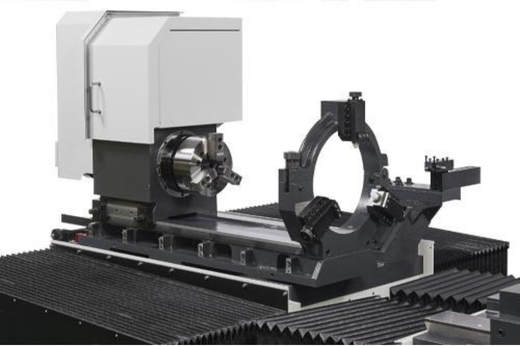

Steady rest, suitable for long workpeice and provides stability during grinding.
| Type | KG-600SR | |
|---|---|---|
| Working Capacity | Grinding dia, range | Ø 4 ~ Ø 320 mm |
| Max, grinding depth | 400 mm | |
| Controller System | Controller | FANUC |
| Workhead | Spindle speed | 0 ~ 1000 rpm |
| X-axis feedrate / Max stroke | 8 M/min / 800 mm | |
| X-axis minimum display unit | 0.0001 mm | |
| Swiveling angle | 0°~+15° | |
| Worktable | Y-axis & Z-axis feed rate | 10/10 M/min |
| Y-axis & Z-axis max. stroke | 450+200 / 450+200 mm | |
| Y-axis & Z-axis minimum display unit | 0.0001 / 0.0001 mm | |
| Y-axis swiveling angle | 0°~+10° | |
| Distance from spindle center to the ground | 1100 mm | |
| Swing of working table | Ø 380 mm | |
| Hydraulic System | Oil Tank Capacity | 30 L |
| Cooling System | Coolant Tank Capacity | 380 L |
| Motor | Hydraulic motor | 0.75 Kw (1HP) |
| Coolant pump motor | Machine : 0.37 Kw (1/2HP) | |
| Base : 0.37 Kw (1/2HP) | ||
| X-axis & Y-axis & Z-axis servomotor | X : 2.5 Kw / Y : 2.5 Kw / Z : 2.5 Kw | |
| Grinding wheel motor (kw) | Y: 4.0 (5HP) | |
| Z: 4.0 (5HP) | ||
| Workhead motor | 1.8 Kw (Brushless Servo) | |
| Others | Automatic lubricator | 4 L |
| Machine dimension (LxWxH)-including accessories | 3500 x 3150 x 1960 mm | |
| Machine Weight | 8300 kg | |
| Standard accessories | CNC Controller | |
| Inverter for X-axis workhead motor | ||
| Inverter for Y-axis grinding spindle motor | ||
| Inverter for Z-axis grinding spindle motor | ||
| Y-axis grinding spindle | ||
| Z-axis grinding spindle | ||
| Hydraulic chuck | ||
| Hydraulic cylinder | ||
| Tricolor alarm lamp | ||
| Working lamp | ||
| Tool box | ||
| Automatic lubricator | ||
| Coolant tank and pump | ||
| Paper filter | ||
| Magnetic separator | ||
| Hydraulic tank with pump | ||
| Internal heat radiation system inside cabinet | ||
| Diamond Dresser | ||
| Leveling bolts and pads | ||
| Mechanical, electrical operation manuals | ||
| Fully-enclosed cover | ||
