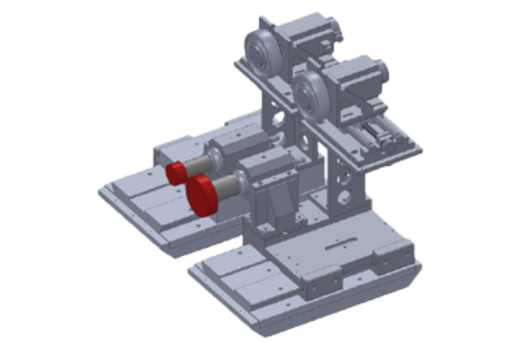

The KG-500L CNC Internal External Cylindrical Compound Grinding Machine is designed for high-precision grinding of complex workpieces requiring multiple grinding operations. Equipped with three grinding spindles and an optional turning spindle, it provides excellent machining flexibility and efficiency. Its large axis travel, full splash guard, and FANUC CNC controller ensure stable, accurate, and reliable performance for demanding production applications.
Key Features

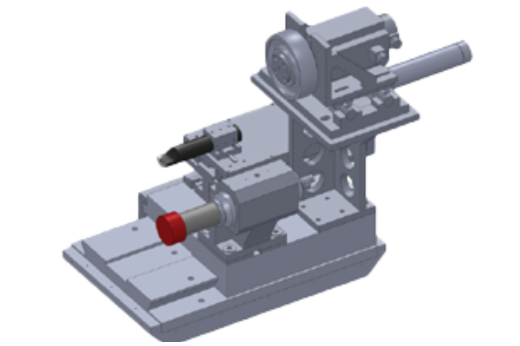

Belt type grinding spindle
With Brushless servomotor to greatly increase torque and efficiency during low speed grinding
| SPECIFICATION | ||
|---|---|---|
| Type | KG-500L | |
| Working Capacity | Grinding dia, range | Ø 4 ~ Ø 320mm |
| Max, grinding depth | 200 mm | |
| Max, swing range of workpiece | Ø 500mm | |
| Swing range within the water proof cover | Ø 320 mm | |
| Controller System | Controller | FANUC |
| Workhead | Spindle speed | 0 ~ 1000 rpm |
| X-axis feedrate / Max stroke | 10 M/min / 750 mm | |
| X-axis minimum display unit | 0.0001 mm | |
| Swiveling angle | -5°~+30° | |
| Worktable | Y-axis & Z-axis feed rate | Y : 10 / Z :10 M/min |
| Y-axis & Z-axis max. stroke | Y : 320+200 / Z : 320+200 | |
| Y-axis & Z-axis minimum display unit | Y : 0.0001 / Z : 0.0001 | |
| Distance from spindle center to the ground | 1100 mm | |
| Hydraulic System | Oil Tank Capacity | 30 L |
| Cooling System | Coolant Tank Capacity | 200 L |
| Motor | Hydraulic motor | 0.75 Kw (1HP) |
| Coolant pump motor | 0.37 Kw (1/2HP) | |
| X-axis & Z-axis servomotor | X : 1.6 Kw / Y : 1.6 Kw / Z : 1.6 Kw | |
| Grinding wheel motor (kw) | Y : 2.2 (3HP) | |
| Z : 2.2 (3HP) | ||
| Spindle motor | 2.2 (3HP) | |
| Others | Automatic lubricator | 4 L |
| Machine dimension (LxWxH)-including accessories | 3450 x 2350 x1950 mm | |
| Machine Weight | 5000 kg | |
| Standard accessories | CNC Controller | |
| Inverter for X-axis workhead motor | ||
| Inverter for Z-axis grinding spindle motor | ||
| Inverter for Z2-axis grinding spindle motor | ||
| Y-axis grinding spindle | ||
| Z-axis grinding spindle | ||
| Hydraulic chuck | ||
| Hydraulic cylinder | ||
| Tricolor alarm lamp | ||
| Working lamp | ||
| Tool box | ||
| Automation lubrication | ||
| Coolant tank and pump | ||
| Paper filter | ||
| Magnetic separator | ||
| Hydraulic tank with pump | ||
| Internal heat radiation system inside cabinet | ||
| Diamond Dresser | ||
| Leveling bolts and pads | ||
| Mechanical, electrical operation manuals | ||
| Fully-enclosed cover | ||
