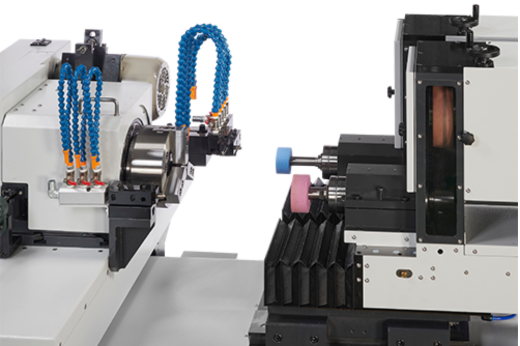

The KG-150D CNC Internal External Cylindrical Compound Grinding Machine is designed for precision grinding of medium and small-sized complex components. Featuring dual grinding spindles and an optional end face grinding spindle, it provides flexible multi-process machining in a compact footprint. Its dual-axis configuration, graphical interface, and FANUC CNC controller ensure efficient, user-friendly operation with consistent grinding accuracy.
Key Features

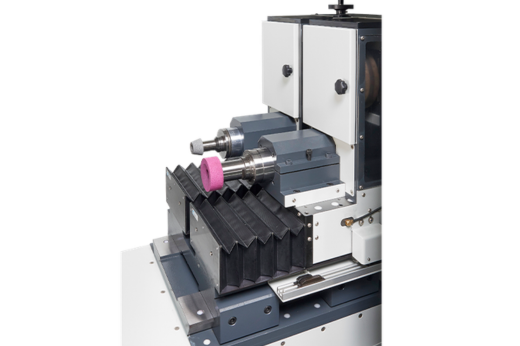

- Innovative slider movement design, significantly reduces interference during grinding.
The grinding spindle is driven by hydraulic cylinder to position, while the extent of movement is controlled by servo motor.
The speed of grinding spindle is available for 10000RPM~50000RPM.
- Max grinding wheel diameter is up to 150mm, which greatly improves machining efficiency.
| Type | KG-150D | |
|---|---|---|
| Working Capacity | Grinding dia, range | Ø 4 ~ Ø 240 mm |
| Max, grinding depth | 150 mm | |
| Max, swing range of workpiece | Ø 300mm | |
| Swing range within the water proof cover | Ø 300 mm | |
| Controller System | Controller | FANUC |

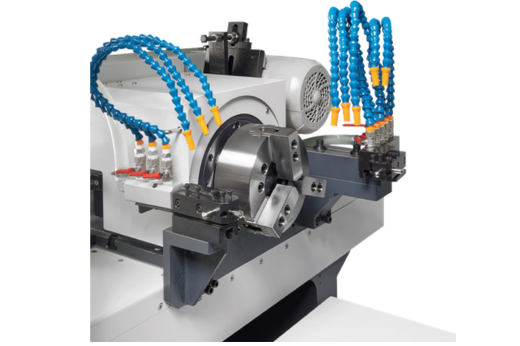

| Workhead | Spindle speed | 0 ~ 1000 rpm |
| X-axis feedrate / Max stroke | 10 M/min / 350 mm | |
| X-axis minimum display unit | 0.0001 mm | |
| Swiveling angle | -5?~+15? | |
| Worktable | Z-axis feed rate | 10 M/min |
| Z-axis max. stroke | 400+100 mm | |
| Z-axis minimum display unit | 0.0001 mm | |
| Distance from spindle center to the ground | 1060 mm | |
| Hydraulic System | Oil Tank Capacity | 40 L |
| Cooling System | Coolant Tank Capacity | 160 L |
| Motor | Hydraulic motor | 1.5 Kw (2HP) |
| Coolant pump motor | 0.18 Kw (1/4HP) | |
| X-axis & Z-axis servomotor | X : 1.2 Kw / Z : 1.2 Kw | |
| Grinding wheel motor (kw) | Z : 2.2 ? (3HP) | |
| Z2 : 2.2 ? (3HP) | ||
| Spindle motor | 2.2 ? (3HP) | |
| Others | Automatic lubricator | 2 L |
| Machine dimension (LxWxH)-including accessories | 2500 x 2400 x 1990 mm | |
| Machine Weight | 3200 kg | |
| Standard accessories | CNC Controller | |
| Inverter for X-axis workhead motor | ||
| Inverter for Z-axis grinding spindle motor | ||
| Inverter for Z2-axis grinding spindle motor | ||
| Z-axis grinding spindle | ||
| Z2-axis grinding spindle | ||
| Hydraulic chuck | ||
| Hydraulic cylinder | ||
| Tricolor alarm lamp | ||
| Working lamp | ||
| Tool box | ||
| Automation lubrication | ||
| Coolant tank and pump | ||
| Paper filter | ||
| Magnetic separator | ||
| Hydraulic tank with pump | ||
| Internal heat radiation system inside cabinet | ||
| Diamond Dresser | ||
| Leveling bolts and pads | ||
| Mechanical, electrical operation manuals | ||
| Fully-enclosed cover | ||
