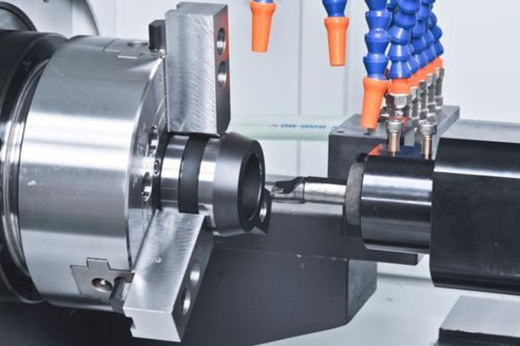

The KG-150A CNC Single Spindle Internal Grinding Machine is designed for high-efficiency internal diameter grinding and single-process machining. Its compact and focused design makes it an excellent solution for mass production, delivering consistent accuracy and reliable performance. With an optional turning spindle, the machine can also support combined machining operations for greater production flexibility.
Key Features

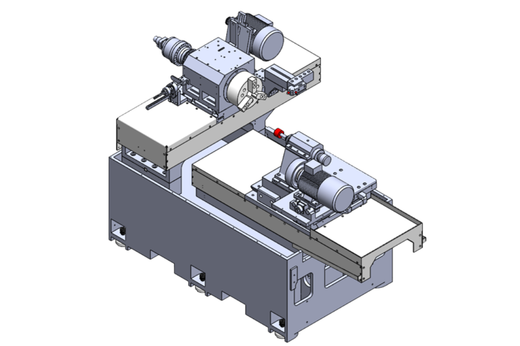

High accuracy linear ways and C1 ball screw for X, Z axis, to guarantee ultra precision and rigidity.

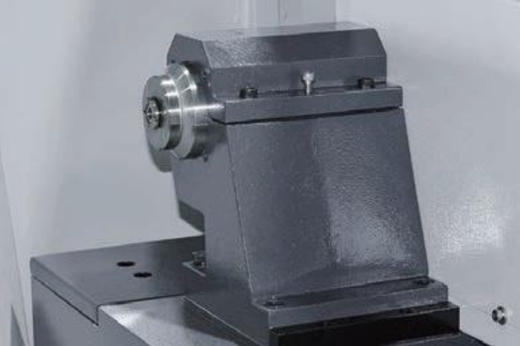

Base structure apply with FC30 cast iron, with tempered and stress released to guarantee machining accuracy and stability.
Oversized machine base with internal rids running throughout each section base on Machanics, featuring long term metallic rigidity and stability.
X, Z axis are both driven by servo motor with min display 0.0001mm.

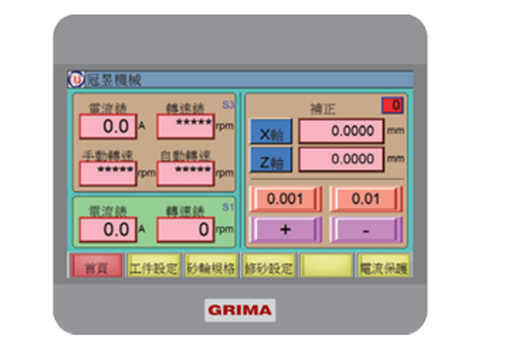

Available to control current under different grinding status.
Grinding sensing.
Easy for tool setting, compensation and grinding wheel size monitoring.
With powerful function to set up parameters for multiple faces grinding.
Available to excute 16 faces grinding with 1 set up.
| SPECIFICATION | ||
|---|---|---|
| Type | KG-150A | |
| Working Capacity | Grinding dia, range | Ø 4 ~ Ø 240 mm |
| Max, grinding depth | 150 mm | |
| Max, swing range of workpiece | Ø 380 mm | |
| Swing range within the water proof cover | Ø 300 mm | |
| Controller System | Controller | FANUC |
| Workhead | Spindle speed | 0 ~ 1000 rpm |
| X-axis feedrate / Max stroke | 10 M/min / 350 mm | |
| X-axis minimum display unit | 0.0001 mm | |
| Swiveling angle | -5?~+15? | |
| Worktable | Z-axis feed rate | 10 M/min |
| Z-axis max. stroke | 400+100 mm | |
| Z-axis minimum display unit | 0.0001 mm | |
| Distance from spindle center to the ground | 1060 mm | |
| Hydraulic System | Oil Tank Capacity | 30 L |
| Cooling System | Coolant Tank Capacity | 160 L |
| Motor | Hydraulic motor | 0.75 Kw (1HP) |
| Coolant pump motor | 0.18 Kw (1/4HP) | |
| X-axis & Z-axis servomotor | X : 1.2 Kw / Z : 1.2 Kw | |
| Grinding wheel motor (kw) | Z : 2.2 ? (3HP) | |
| Spindle motor | 2.2 ? (3HP) | |
| Others | Automatic lubricator | 2 L |
| Machine dimension (LxWxH)-including accessories | 2500 x 2300 x1750 mm | |
| Machine Weight | 3000 kg | |

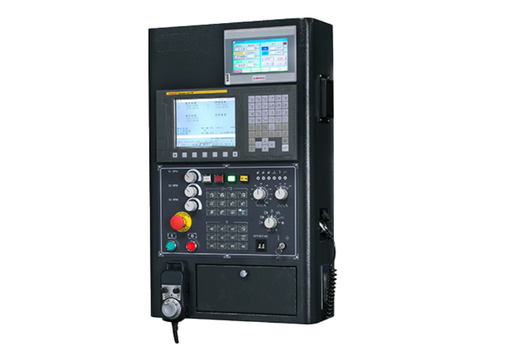

| Standard accessories | CNC Controller | |
| Inverter for X-axis workhead motor | ||
| Inverter for Z-axis grinding spindle motor | ||
| Z-axis grinding spindle | ||
| Hydraulic chuck | ||
| Hydraulic cylinder | ||
| Tricolor alarm lamp | ||
| Working lamp | ||
| Tool box | ||
| Automation lubrication | ||
| Coolant tank and pump | ||
| Paper filter | ||
| Magnetic separator | ||
| Hydraulic tank with pump | ||
| Internal heat radiation system inside cabinet | ||
| Diamond Dresser | ||
| Leveling bolts and pads | ||
| Mechanical, electrical operation manuals | ||
| Semi-enclosed cover | ||
