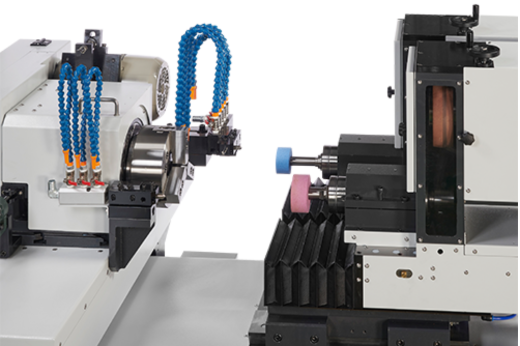

The KG-500LE CNC Internal External Cylindrical Compound Grinding Machine is designed for high-efficiency precision grinding of multi-face workpieces. Equipped with two independent grinding spindles, a large Ø405 mm external grinding wheel, and an internal grinding spindle, it enables continuous end face and internal diameter grinding in a single setup. This integrated configuration reduces machining time while delivering excellent grinding efficiency, accuracy, and consistency.
Key Features
Free to apply various grinding wheel upon workpeices, which is a perfect choice for high accuracy and complicated workpieces.
With high rigidity A2-6 taper spindle.
This spindle provides excellent radial rigidity, stable thermal, minimum heat deformation, and high dynamic accuracy to guarantee absolutely grinding quality.

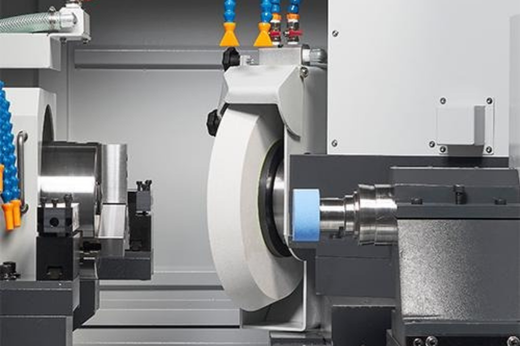

Y axis applys to sleeve type rigid grinding spindle with Ø405mm grinding wheel (wheel angle 25°)

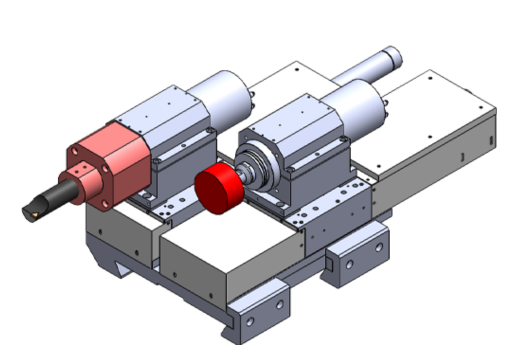

Z axis applys to BELT type grinding spindle

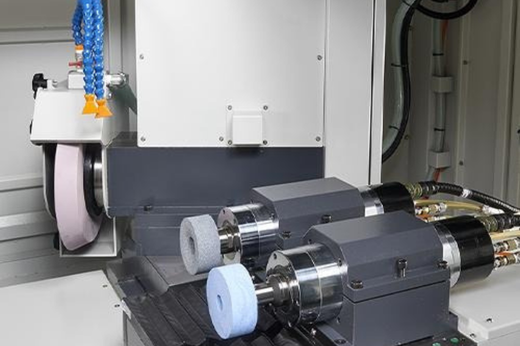

Y axis applys to sleeve type rigid grinding spindle with Ø405mm grinding wheel (wheel angle 25°)
Z axis applys to BUILT-IN type grinding spindle.
Z2 axis applys to BUILT-IN type grinding spindle.
| SPECIFICATION | ||
|---|---|---|
| Type | KG-500LE | |
| Working Capacity | Grinding dia, range | Ø 4 ~ Ø 320mm |
| Max, grinding depth | 200 mm | |
| Max, swing range of workpiece | Ø 480mm | |
| Swing range within the water proof cover | Ø 300 mm | |
| Controller System | Controller | FANUC |
| Workhead | Spindle speed | 0 ~ 1000 rpm |
| X-axis feedrate / Max stroke | 10 M/min / 750 mm | |
| X-axis minimum display unit | 0.0001 mm | |
| Swiveling angle | -5°~+30° | |
| Worktable | Y-axis & Z-axis feed rate | Y : 10 / Z :10 M/min |
| Y-axis & Z-axis max. stroke | Y : 320+150 / Z : 320+200 | |
| Y-axis & Z-axis minimum display unit | Y : 0.0001 / Z : 0.0001 | |
| Distance from spindle center to the ground | 1100 mm | |
| Hydraulic System | Oil Tank Capacity | 30 L |
| Cooling System | Coolant Tank Capacity | 250 L |
| Motor | Hydraulic motor | 0.75 Kw (1HP) |
| Coolant pump motor | Cylindrical Wheel : 0.18 Kw (1/4HP) | |
| Machine : 0.37 Kw (1/2HP) | ||
| X-axis & Z-axis servomotor | X : 1.6 Kw / Y : 1.6 Kw / Z : 1.6 Kw | |
| Grinding wheel motor (kw) | Y : 5.5 (7.5HP) | |
| Z : 3.7 (5HP) | ||
| Spindle motor | 2.2 (3HP) | |
| Others | Automatic lubricator | 4 L |
| Machine dimension (LxWxH)-including accessories | 3450 x 2350 x 2055 mm | |
| Machine Weight | 5300 kg | |
| Standard accessories | CNC Controller | |
| Inverter for X-axis workhead motor | ||
| Inverter for Z-axis grinding spindle motor | ||
| Inverter for Z2-axis grinding spindle motor | ||
| Y-axis grinding spindle | ||
| Z-axis grinding spindle | ||
| Hydraulic chuck | ||
| Hydraulic cylinder | ||
| Tricolor alarm lamp | ||
| Working lamp | ||
| Tool box | ||
| Automation lubrication | ||
| Coolant tank and pump | ||
| Paper filter | ||
| Magnetic separator | ||
| Hydraulic tank with pump | ||
| Internal heat radiation system inside cabinet | ||
| Diamond Dresser | ||
| Leveling bolts and pads | ||
| Mechanical, electrical operation manuals | ||
| Fully-enclosed cover | ||
