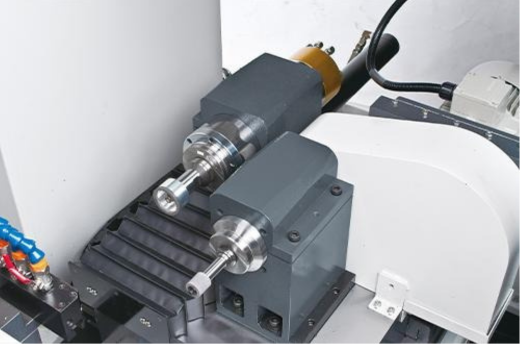

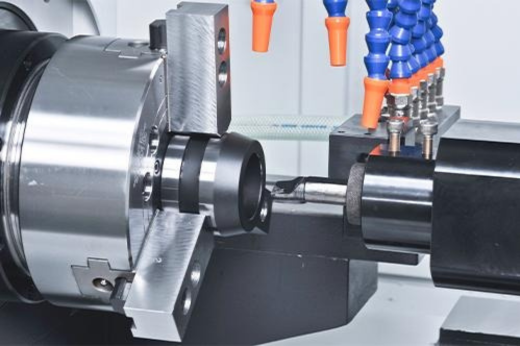

The KG-150B CNC Internal External Cylindrical Compound Grinding Machine is designed for precision internal diameter and end face grinding. Equipped with dual grinding spindles, it provides flexible multi-process machining in a compact configuration. With its FANUC CNC controller, rigid structure, and full splash guard, the KG-150B delivers reliable accuracy and consistent performance for high-efficiency production.
Key Features
High accuracy linear ways and C1 ball screw for X, Z axis, to guarantee ultra precision and rigidity.

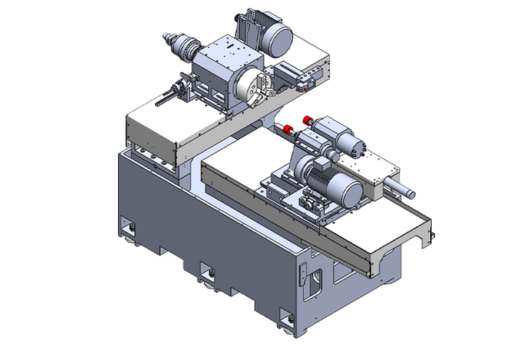

Base structure apply to FC30 cast iron, with tempered and stress released to guarantee machining accuracy and stability.
Oversized machine base with internal rids running throughout each section base on Machanics, featuring long term metallic rigidity and stability.
X, Z axis are both driven by servo motor with min display 0.0001mm.

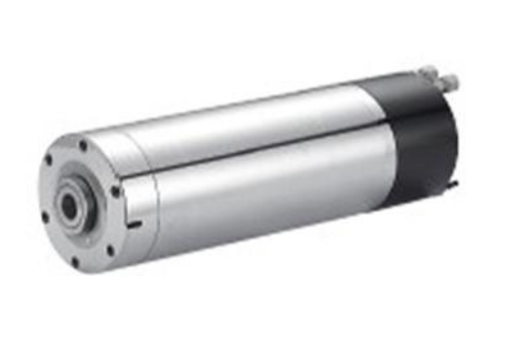

End face grinding spindle is driven by hydraulic cylinder to position, while the extent of movement is controlled by servo motor. 10000 rpm built-in grinding spindle
With powerful function to set up parameters for multiple faces grinding.
Available to excute 16 faces grinding with 1 set up
Available to control current under different grinding status
Grinding sensing

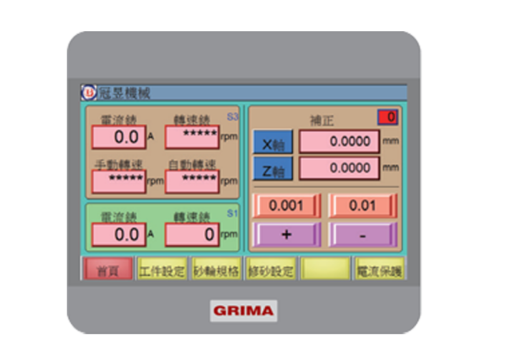

Easy for tool setting, compensation and grinding wheel size monitoring
| Type | KG-150B | |
|---|---|---|
| Working Capacity | Grinding dia, range | Ø 4 ~ Ø 200mm |
| Max, grinding depth | 150 mm | |
| Max, swing range of workpiece | Ø 300mm | |
| Swing range within the water proof cover | Ø 300 mm | |

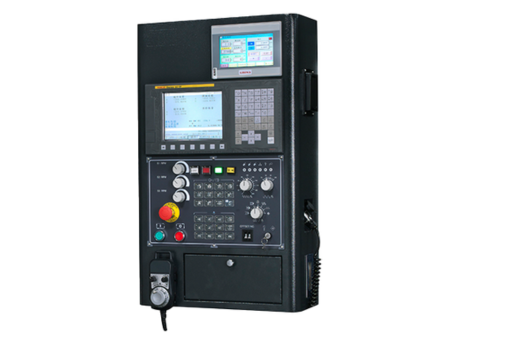

| Controller System | Controller | FANUC |
| Workhead | Spindle speed | 0 ~ 1000 rpm |
| X-axis feedrate / Max stroke | 10 M/min / 350 mm | |
| X-axis minimum display unit | 0.0001 mm | |
| Swiveling angle | -5?~+15? | |
| Worktable | Z-axis feed rate | 10 M/min |
| Z-axis max. stroke | 400+100 mm | |
| Z-axis minimum display unit | 0.0001 mm | |
| Distance from spindle center to the ground | 1060 mm | |
| Hydraulic System | Oil Tank Capacity | 30 L |
| Cooling System | Coolant Tank Capacity | 160 L |
| Motor | Hydraulic motor | 0.75 Kw (1HP) |
| Coolant pump motor | 0.18 Kw (1/4HP) | |
| X-axis & Z-axis servomotor | X : 1.2 Kw / Z : 1.2 Kw | |
| Grinding wheel motor (kw) | Z : 2.2 ? (3HP) | |
| Z2 : 3.0(Built-in) | ||
| Spindle motor | 2.2 ? (3HP) | |
| Others | Automatic lubricator | 2 L |
| Machine dimension (LxWxH)-including accessories | 2500 x 2300 x1750 mm | |
| Machine Weight | 3200 kg | |
| Standard accessories | CNC Controller | |
| Inverter for X-axis workhead motor | ||
| Inverter for Z-axis grinding spindle motor | ||
| Inverter for Z2-axis grinding spindle motor | ||
| Z-axis grinding spindle | ||
| Z2-axis grinding spindle | ||
| Hydraulic chuck | ||
| Hydraulic cylinder | ||
| Tricolor alarm lamp | ||
| Working lamp | ||
| Tool box | ||
| Automation lubrication | ||
| Coolant tank and pump | ||
| Paper filter | ||
| Magnetic separator | ||
| Hydraulic tank with pump | ||
| Internal heat radiation system inside cabinet | ||
| Diamond Dresser | ||
| Leveling bolts and pads | ||
| Mechanical, electrical operation manuals | ||
| Fully-enclosed cover | ||
