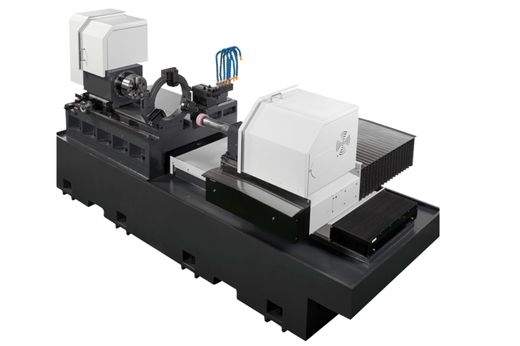

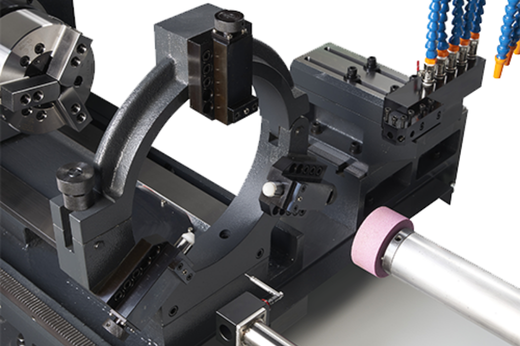

The KG-410SR CNC Steady Rest Internal Compound Grinding Machine is designed for precision grinding of large, long, and heavy workpieces. Equipped with dual grinding wheel spindles and a center frame assembly, it provides excellent stability and flexibility for grinding depths of up to 410 mm. Adjustable spindle head positions and a 0° to +15° slide angle range allow the machine to accommodate various workpiece specifications and complex grinding requirements.
Key Features
Wide span design with rigid roller type linear way
Double linear ways with 6 blocks to make sure axial rigidity and stability.
With 1 V 1 Flat box way design and non-stop oil supplying system for rails to make sure grinding straightness and lower friction coefficient during movement.

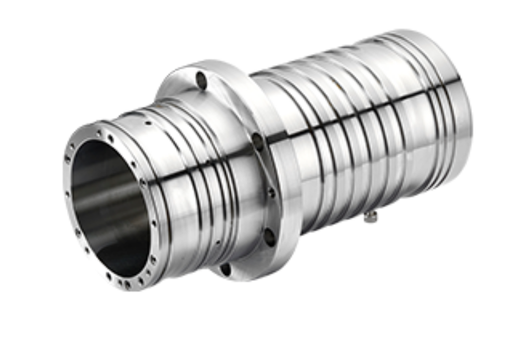

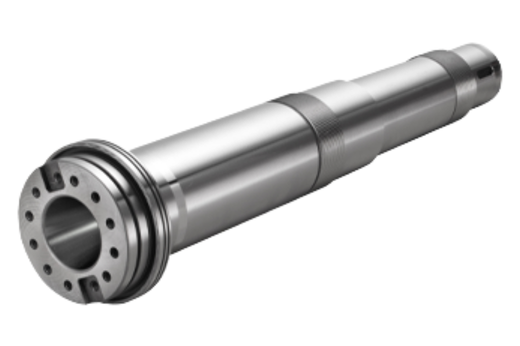

Sleeve type rigid spindle.
Easy to move workhead upon length of workpeices.
Suitable for long workpeice and provides stability during grinding.
| SPECIFICATION | ||
|---|---|---|
| Type | KG-410SR | |
| Working Capacity | Grinding dia, range | Ø 4 ~ Ø 320 mm |
| Max, grinding depth | 410 mm | |
| Controller System | Controller | FANUC |
| Workhead | Spindle speed | 0 ~ 1000 rpm |
| X-axis feedrate / Max stroke | 8 M/min / 650 mm | |
| X-axis minimum display unit | 0.0001 mm | |
| Swiveling angle | -5?~+15? | |
| Worktable | Y-axis & Z-axis feed rate | Z : 6 M/min |
| Y-axis & Z-axis max. stroke | Z : 550 mm | |
| Y-axis & Z-axis minimum display unit | Z : 0.0001mm | |
| Y-axis swiveling angle | - | |
| Distance from spindle center to the ground | 1070 mm | |
| Swing of working Table | Ø 380 mm | |
| Hydraulic System | Oil Tank Capacity | 40 L |
| Cooling System | Coolant Tank Capacity | 400 L |
| Motor | Hydraulic motor | 1.5 Kw (2HP) |
| Coolant pump motor | 0.37 Kw (1/2HP) | |
| X-axis & Y-axis & Z-axis servomotor | X : 2.5 Kw / Z : 2.5 Kw | |
| Grinding wheel motor (kw) | Z: 2.2? (3HP) | |
| Z2 : 2.2? (3HP) | ||
| Workhead motor | 1.8Kw(Brushless Servo) | |
| Others | Automatic lubricator | 4 L |
| Machine dimension (LxWxH)-including accessories | 4200 x 3100 x2100 mm | |
| Machine Weight | 8000 kg | |
| Standard accessories | CNC Controller | |
| Inverter for X-axis workhead motor | ||
| Inverter for Z-axis grinding spindle motor | ||
| Inverter for Z2-axis grinding spindle motor | ||
| Z-axis grinding spindle | ||
| Z2-axis grinding spindle | ||
| Hydraulic chuck | ||
| Hydraulic cylinder | ||
| Tricolor alarm lamp | ||
| Working lamp | ||
| Tool box | ||
| Automatic lubricator | ||
| Coolant tank and pump | ||
| Paper filter | ||
| Magnetic separator | ||
| Hydraulic tank with pump | ||
| Internal heat radiation system inside cabinet | ||
| Diamond Dresser | ||
| Foundation bolts and blocks | ||
| Mechanical, electrical operation manuals | ||
| Fully-enclosed cover | ||
