The VP-10 Vertical Machining Center delivers outstanding cost performance and versatile machining capability, making it a reliable solution for part production and small- to medium-sized manufacturing operations seeking higher productivity.
Equipped with a BBT-40 direct-coupled spindle and a high-speed ATC system, the VP-10 ensures stable cutting rigidity while reducing non-cutting time. Its optimized C-frame structure maintains machining accuracy and stability during high-speed operation. With low maintenance requirements and proven durability, the VP-10 balances production flexibility and cost efficiency, helping manufacturers achieve consistent output and maximize return on investment.

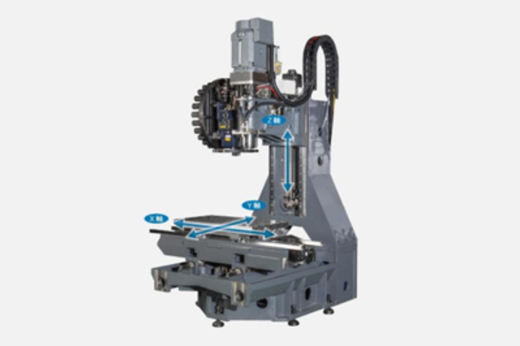

The Delta structure combined with a wide-span column design and an optimized force flow path effectively resist cutting forces and ensure stable load transmission, maintaining consistent machining accuracy during long-duration operations.

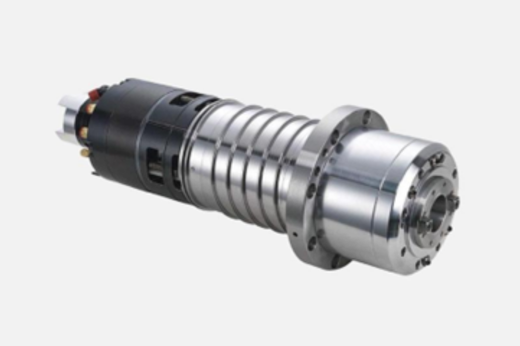

The direct-drive spindle, combined with a flexible coupling to isolate heat sources, delivers high precision, low vibration, and extended service life. A high-speed automatic coil switching system, together with high power output, further enhances cutting efficiency.

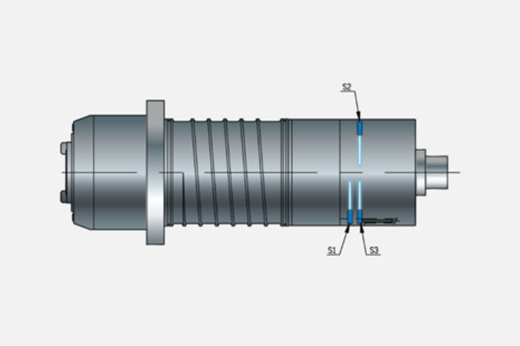

The spindle is equipped with a standard drawbar position sensor to monitor tool clamping status. This helps prevent abnormal clamping and spindle operation without a tool, improving machining safety and operational stability.
The servo motor is directly coupled to the ball screw via a backlash-free rigid coupling, ensuring precise micro-feed control. Its high torsional rigidity also reduces reversal errors, enhancing overall positioning accuracy.
| Specification | VP-8 |
| Table size(LxW) | 1070x510 mm |
| Max. loading capacity | 500 kg |
| X/Y/Z axis travel | 1020/510/600 mm |
| X/Y/Z axis rapid traverse | 36/36/36 m/min |
| Spindle taper | 7/24 Taper No.40 |
| Spindle speed | 10000 (15000) rpm |
| Spindle motor | 11/7.5 (15/11/7.5) kW |
| Tool capacity | 24 (30) pc |
