SVM SERIES

Feature

The Smart Machine Tools SVM Series is a Vertical Machining Center designed for high-speed, high-precision machining across a wide range of manufacturing applications The Smart Machine Tools Series is a Vertical Machining Center designed for high-speed, high-precision machining across a wide range of manufacturing applications. Its high-rigidity roller-type linear guideways on all axes provide excellent stability, accuracy, and smooth motion during demanding machining operations.

Featuring a compact machine design for easy operation and a 12,000 rpm spindle, the SVM Series delivers reliable productivity while maximizing floor space. An automatic grease lubrication system reduces maintenance time and costs, making it an efficient and dependable solution for precision component manufacturing.

Product Introduction

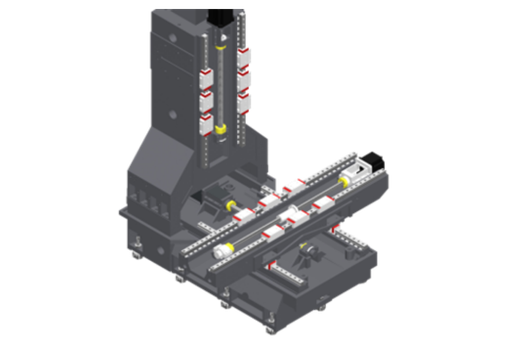

Guideway

High-rigidity roller-type LM guideways are applied to all axis feeds, ensuring superior rigidity, high accuracy, and fast axis movement while also enhancing load capacity.
Additional LM blocks mounted on the X-axis and Z-axis enhance machining rigidity and stability.

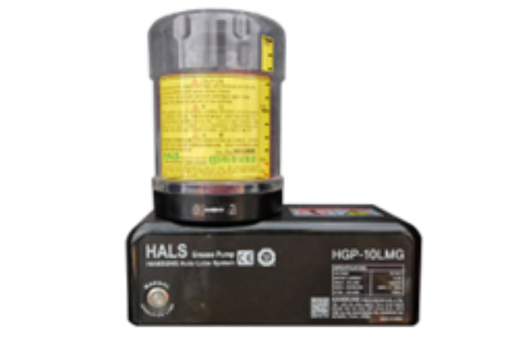

Automactic Grease Lubrication

The standard grease lubrication reduces maintenance time and cost compared
to oil lubrication. Since no lubrication oil mixes into the coolant tank, coolant life is significantly extended, eliminates the need for an oil skimmer.

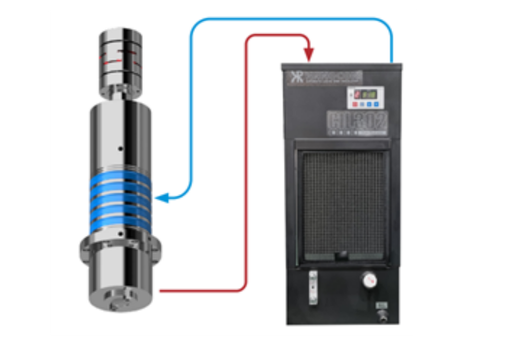

Spindle Cooling System

The Spindle cooling system minimizes thermal displacement, ensure maximum machining accuracy even during a long period of machining.

Product Specifications

DESCRIPTION		SVM 550	SVM 550L	SVM 650	SVM 650L
Table Size	mm(inch)	1,000×550 (39.37×21.65)	1,200×550 (47.24×21.65)	1,200×650 (47.24×25.59)	1,600×650 (62.99×25.59)
Max. Load Capacity	kg(lb)	600 (1,323)	800 (1,764)	900 (1,984)	1,200 (2,646)
Spindle Taper	-	BBT40 [CAT40]	BBT40 [CAT40]	BBT40 [CAT40]	BBT40 [CAT40]
Spindle Speed	rpm	12,000	12,000	12,000	12,000
Spindle Motor (Cont./Max)	kW(HP)	11/18.5 (15/25)	11/18.5 (15/25)	11/18.5 (15/25)	11/18.5 (15/25)
No. of Tool Magazine	ea	30	30	30	30
Travel (X/Y/Z)	mm(inch)	850/550/550	1,000/550/550	1,200/670/600	1,500/670/600
Travel (X/Y/Z)	mm(inch)	(33.46/21.65/21.65)	(39.37/21.65/21.65)	(47.24/26.38/23.62)	(59.06/26.38/23.62)
Rapid Traverse (X/Y/Z)	m/min(ipm)	36/36/36	36/36/36	36/36/36	36/36/36
Rapid Traverse (X/Y/Z)	m/min(ipm)	(1,417/1,417/1,417)	(1,417/1,417/1,417)	(1,417/1,417/1,417)	(1,417/1,417/1,417)
