TMV-1100A

Feature

The Tongtai TMV-1100A is a Vertical Machining Center designed for mass production and automated manufacturing. Its high-rigidity, vibration-damping structure, combined with large linear guideways and ballscrews, delivers exceptional stability, load capacity, and reliable performance during heavy-duty machining.

With 1,100 × 600 × 530 mm axis travel, the TMV-1100A can be equipped with an optional BT-50 spindle for enhanced cutting capability. Supporting a wide range of automation systems, it is an ideal solution for automotive parts production and other high-volume manufacturing environments requiring superior productivity, accuracy, and machine utilization.

Product Introduction

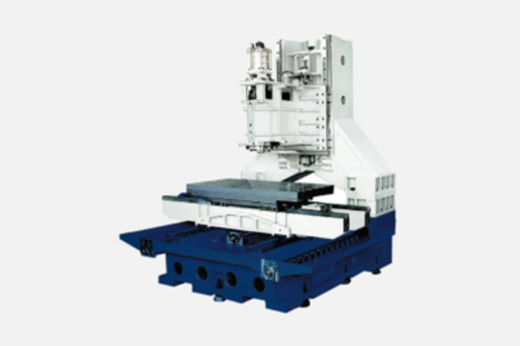

High-Rigidity Structural

The machine adopts a specially engineered high‑rigidity structure that effectively absorbs machining vibration, enhancing machining stability and accuracy while ensuring reliable long-term operation

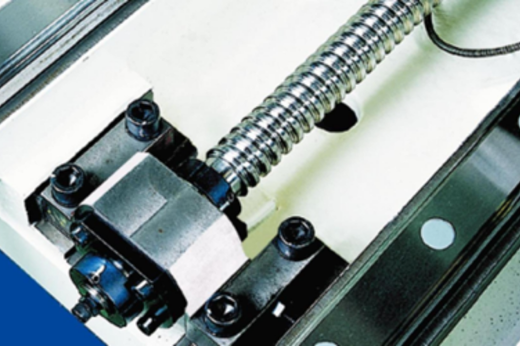

Pre-Tensioned Ballscrew

All three-axis ballscrews are preloaded to reduce thermal deformation caused by temperature rise, minimizing the effects of thermal expansion and ensuring stable machining accuracy and consistent machine performance.

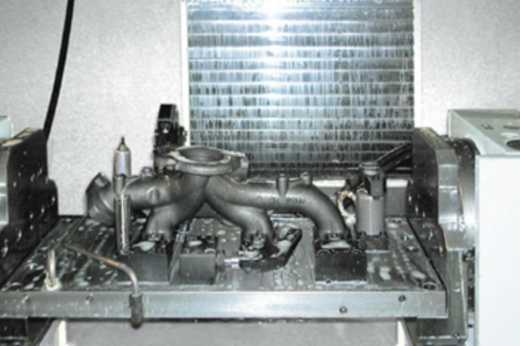

Custom Integration Capabilities

The machine supports customized configurations and integrated turnkey solutions to meet the diverse requirements of mass production and automated manufacturing environments, enabling high-efficiency production workflows.

Product Specifications

Specification	TMV-1100A
Table size(LxW)	1200x600 mm
Max. loading capacity	1000 kg
X/Y/Z axis travel	1100/600/530 mm
X/Y/Z axis rapid traverse	30/30/24 m/min
Spindle taper	7/24 Taper No.40/No.50
Spindle speed	BT-40: 8000 (5000) (7000) (10000) (12000) (15000) rpm
Spindle speed	BT-50: 3500 (6000) rpm
Spindle motor	BT-40: 18.5/15/11 (12/9/7.5) (15/11/7.5) (18.5/11/7.5) kW
Spindle motor	BT-50: 18.5/15/11 kW
Tool capacity	24 (30) pc
