Multitasking Turning Center TMT 2000-T3Y2

Advanced 5-axis technology.
Unmatched precision. Complete flexibility.

5-Axis Simultaneous

High Rigidity

Structure

High Accuracy

& Stability

Complete

Machining

TMT2000-T3Y2

Product Introduction

Product Specifications

Enquiry Now

Download Brochure

Feature

The TMT2000-T3Y2 Multi-Tasking Turning Center is designed for complex, high-precision machining in the medical, automotive, and aerospace industries. Featuring a symmetrical slide design and multi-turret configuration, it enables complete turn-mill operations in a single setup, delivering exceptional accuracy, rigidity, and productivity.

Key Features

Multi-turret configuration for high-efficiency machining.
Symmetrical slide design for superior rigidity and stability.
Complete turning and milling operations in a single setup.
Eliminates secondary machining errors and improves part accuracy.
Modular design supports automated and unmanned production.
High-rigidity construction for long-term precision and reliability.

Product Introduction

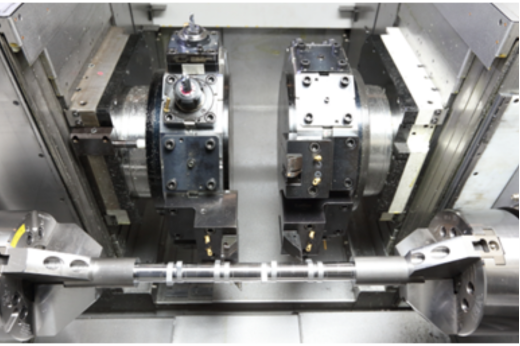

Triple Turret & Twin Y-Axis

Features a three-turret with twin Y-axis design where the lower turret provides support for long shaft workpieces, minimizing deflection and vibration to enhance stability and precision.

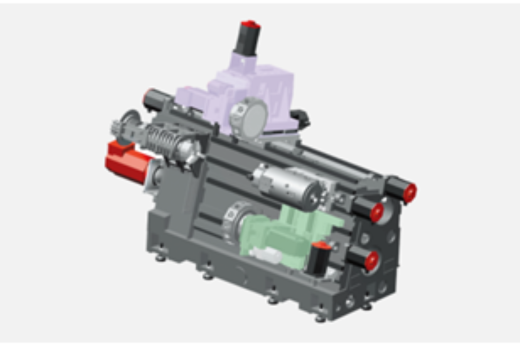

Orthogonal Y-axis Design

Equipped with a true linear Y-axis and orthogonal X/Y/Z axes to eliminate virtual axis errors, ensuring superior positioning accuracy during complex milling operations.

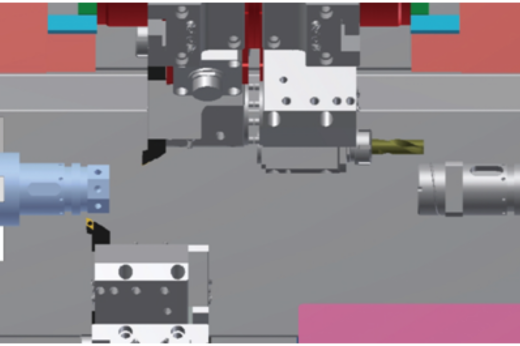

Intelligent Safety

The optional 3D anti-collision system monitors interferences in real-time, automatically stopping the machine before impact to ensure operator safety and reduce setup time.

Product Specifications

Item	TMT2000-T3Y2
Chuck O.D.	8" inch
Bar capacity	Ø65 (Ø51) mm
X1/X2/X3 axis travel	230/205/230 mm
Y1/Y2/Y3 axis travel	±51/-/±51 mm
Z1/Z2/Z3/B axis travel	440/600/440/680 mm
X/Y/Z/B axis rapid traverse	30/15/36/30 m/min
Spindle nose	A2-6
Spindle speed	4,500 (6,000) rpm
Spindle motor	18.5/15/11 kW
Sub-spindle chuck O.D.	8" mm
Sub-spindle speed	6,000 rpm
Sub-spindle motor	18.5/11 kW
Tool capacity	12 (16) x3 pc
