The TMT2000-T2Y2 Multi-Tasking Turning Center is engineered for high-efficiency production of precision components. Featuring twin spindles, twin power turrets, and twin Y-axes, it enables complex turn-mill machining in a single setup while delivering exceptional rigidity, stability, and productivity.
Key Features

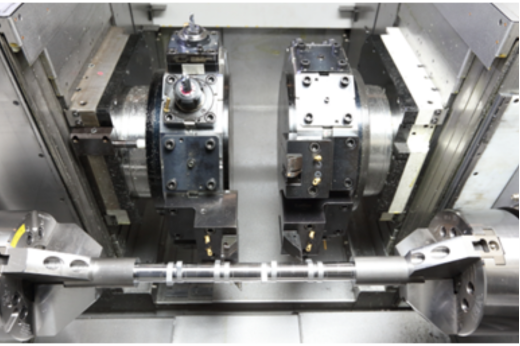

Dual Y-axis Efficiency
Independent Y-axes on dual turrets allow simultaneous machining, reducing cycle times by up to 50% for maximum output.

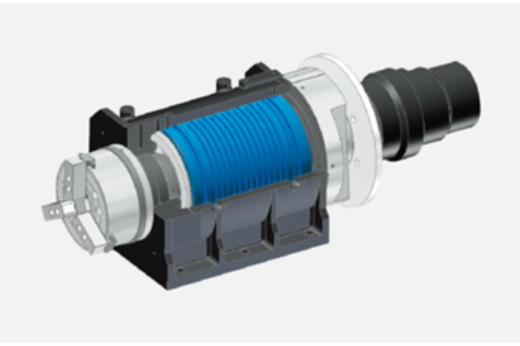

Enhanced Sub Spindle
The built-in sub-spindle with 18.5/11 kW power and water-cooling prevents thermal displacement, ensuring high precision during prolonged operations.

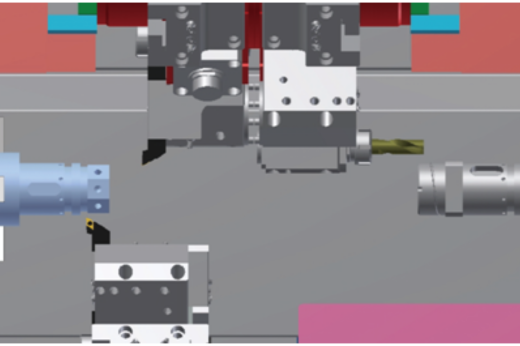

3D Collision Simulation
Optional built-in 3D simulation checks turrets, spindles, and fixtures for potential interference before actual machining to ensure program integrity and machine safety.
| Item | TMT2000-T2Y2 |
|---|---|
| Chuck O.D. | 8" inch |
| Bar capacity | Ø65 (Ø51) mm |
| X1/X2/X3 axis travel | 230/-/230 mm |
| Y1/Y2/Y3 axis travel | ±51/-/±51 mm |
| Z1/Z2/Z3/B axis travel | 440/-/440/680 mm |
| X/Y/Z/B axis rapid traverse | 30/15/36/30 m/min |
| Spindle nose | A2-6 |
| Spindle speed | 4,500 (6,000) rpm |
| Spindle motor | 18.5/15/11 kW |
| Sub-spindle chuck O.D. | 8" mm |
| Sub-spindle speed | 6,000 rpm |
| Sub-spindle motor | 18.5/11 kW |
| Tool capacity | 12 (16) x2 pc |
