Multitasking Turning Center TMT 2000-T2Y1

Advanced 5-axis technology.
Unmatched precision. Complete flexibility.

5-Axis Simultaneous

High Rigidity

Structure

High Accuracy

& Stability

Complete

Machining

TMT2000-T2Y1

Product Introduction

Product Specifications

Enquiry Now

Download Brochure

Feature

The TMT2000-T2Y1 Multi-Tasking Turning Center is designed for high-precision, multi-process machining with a compact and high-rigidity structure. Featuring a twin-spindle, twin-turret configuration with a Y-axis on one turret, it enables efficient turning and milling in a single setup, making it an ideal solution for automated production.

Key Features

Twin-spindle, twin-turret configuration for increased productivity.
Y-axis on one turret for enhanced milling and complex machining.
Turning and milling operations completed in a single setup.
Symmetrical slide design for optimal force distribution and stability.
Compact, high-rigidity structure for long-term reliability.
Suitable for industrial automation and high-precision production.

Product Introduction

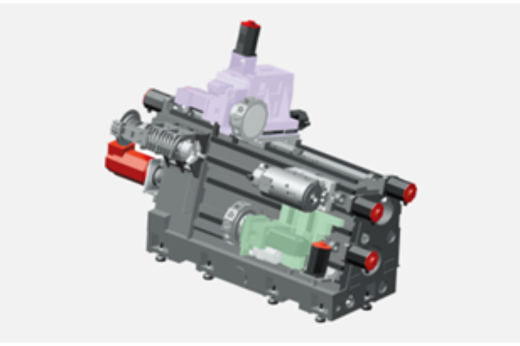

Symmetrical Orthogonal Structure.

True linear Y-axis with 90-degree orthogonal X/Y/Z design provides superior straightness and positioning compared to virtual axes.

Precision Cs-Axis Positioning

Main and sub spindles feature 0.001° indexing with optical scale feedback, meeting the demands for complex multi-angle precision machining.

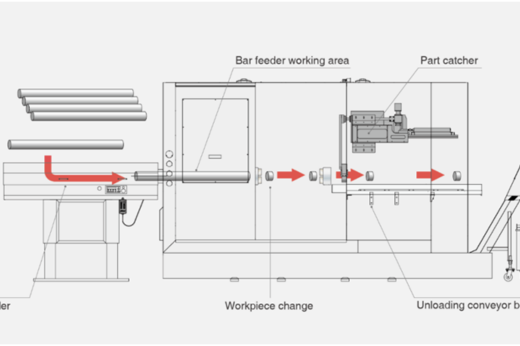

Automation Ready

Compatible with bar feeders or gantry robots for long-term unmanned operation, creating a highly flexible manufacturing system and better ROI.

Product Specifications

Item	TMT2000-T2Y1
Chuck O.D.	8" inch
Bar capacity	Ø65 (Ø51) mm
X1/X2/X3 axis travel	230/205/- mm
Y1/Y2/Y3 axis travel	±51/-/- mm
Z1/Z2/Z3/B axis travel	600/600/-/680 mm
X/Y/Z/B axis rapid traverse	30/15/36/30 m/min
Spindle nose	A2-6
Spindle speed	4,500 (6,000) rpm
Spindle motor	18.5/15/11 kW
Sub-spindle chuck O.D.	8" mm
Sub-spindle speed	6,000 rpm
Sub-spindle motor	18.5/11 kW
Tool capacity	12 (16) x2 pc
