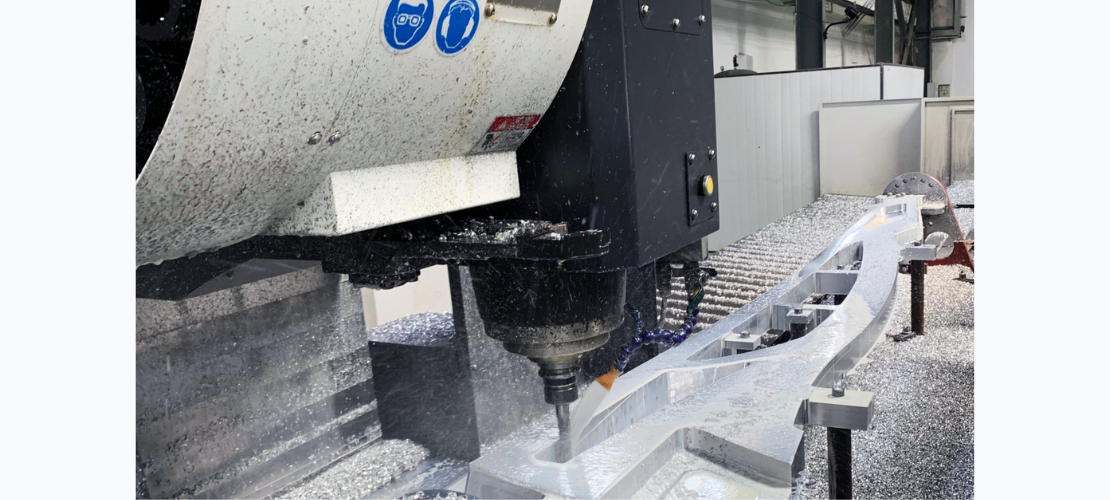

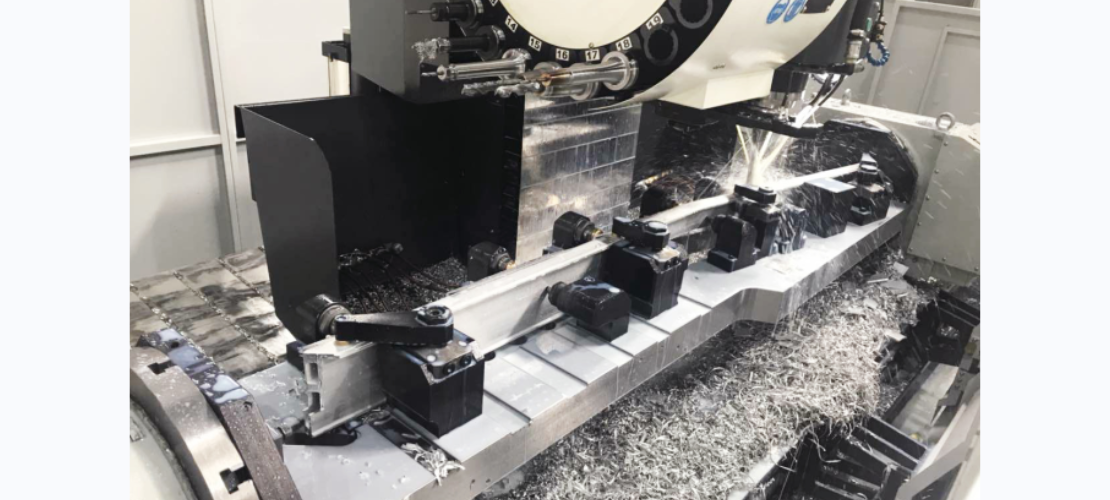

1. Automatic multiple machining center with functions of milling, drilling, tapping, routing, chamfering, applicable for various length of profile, Steel, Copper, Aluminum.
2. Automatic chip conveyer BT40 spindle guarantee high rigidity.
3. Protection door provide safety and cleanness.
4. Arm-type tool magazine take 2 second only for tool changing in advance.
5. Casting machine, suitable for high precision machining, strong stability.
TRAVEL |
|
| Model | SCH |
|---|---|
| X-Axis Stroke | 2500-9000mm |
| Y-Axis Stroke | 600 mm |
| Z-Axis Stroke | 610 mm |
SPINDLE |
|
| Spindle Speed | 12000r.p.m |
| Spindle Taper | BT40 |
TOOLS |
|
| Tool Changer Format | Disc type |
| Pull Studs Format | 45° |
| Tool Capacity | 24 pcs |
| Tool Change Time | 3 ses |
MOVING SPEED |
|
| X-Axis Moving Speed | 60 m/min |
| Y / Z-Axis Moving Speed | 28 / 28m / min |
| Feeding Speed | 20000 mm/min |
POWER OF MOTOR |
|
| Spindle Driven Motor | 11.0kw |
| X / Y / Z Driven Motor | 3.0/3.0/3.0kw |
LUBRICATING SYSTEM |
|
| Cooling system | Water cooling system |
| Lubricating system | Automative lubricating |
PRECISION |
|
| Position Precisionof X Axis | 0.03mm |
| Position Precision of Y / Z Axis | 0.015mm |
| Repeating Precision (X / Y / Z) | 0.015mm |
SIZE OF MACHINE |
|
| Air Pressure | 6 kg/cm |
| Operation System | FANUC/SIEMENS |
| Height | 3200 mm |
| Area | 10000-16000*3200mm |
| Weight | 12000-25000kg |
