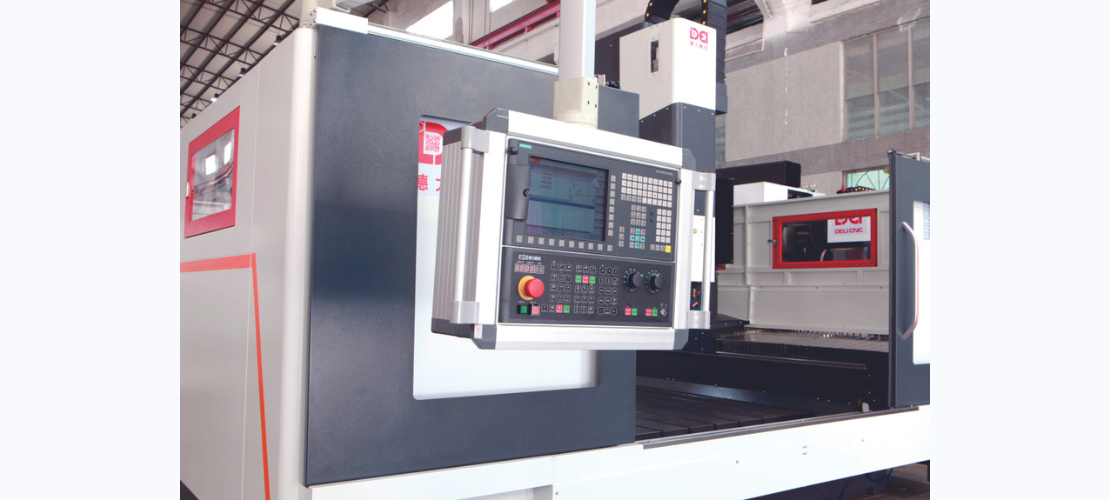

1.Use international special CNC numerical control system.

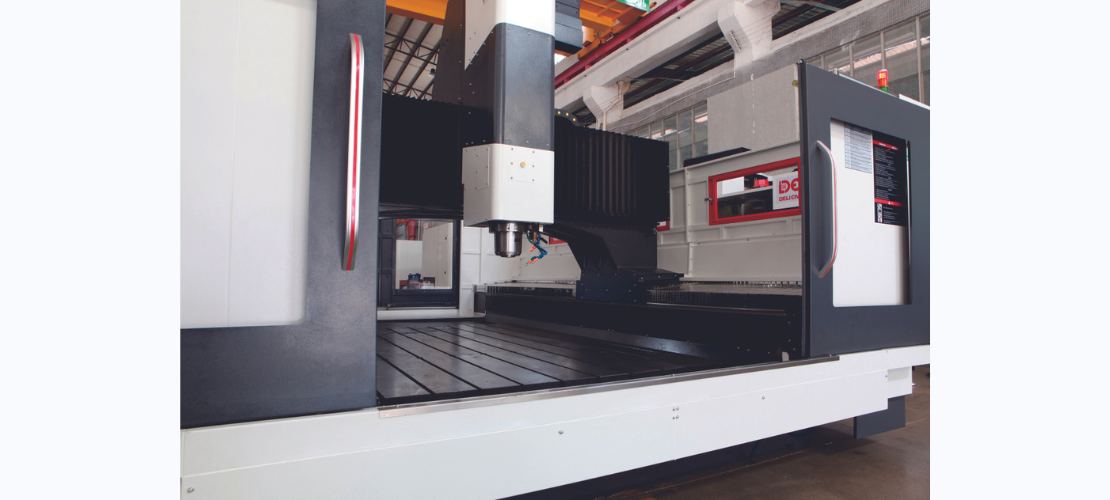

2.The machine is a CNC gantry compound machining center integrating drilling, tapping and milling.
3.Suitable for processing various steel, aluminum, copper metals and non-metals

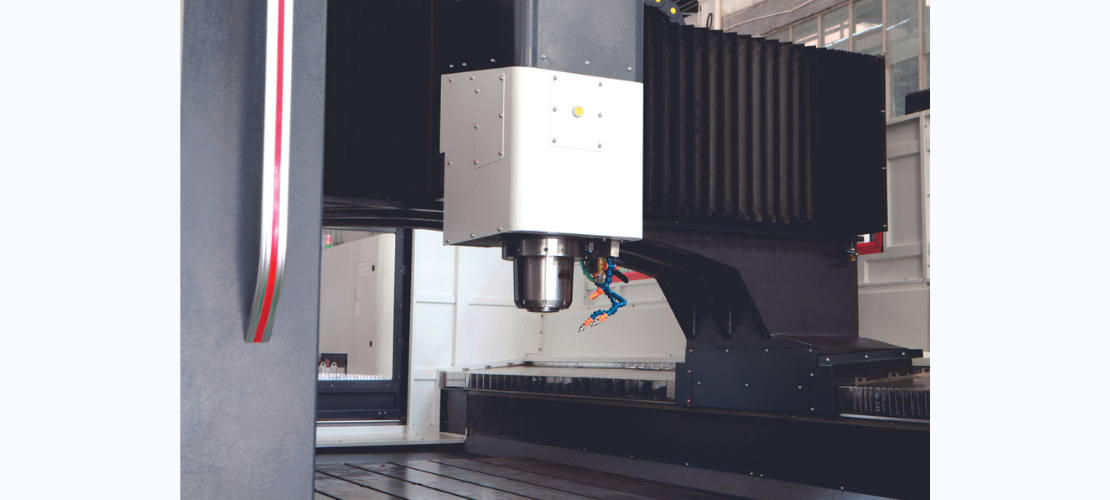

4.Adopt casting body design, use BT40 mechanical spindle or electric spindle.
5.The range of processed parts is large and the processing precision is high.
6.Equipped with an automatic chip removal machine for easy cleaning.
7.Optional three-axis screw configuration.
8.Widely used in: aerospace, new energy vehicle electrical trays, rail transit, machinery manufacturing and other profile and plate processing.
TRAVEL |
|
| Model | MDF |
|---|---|
| X-Axis Stroke | 3/3000mm 5/2530mm |
| Y-Axis Stroke | 3/2000mm 5/1530mm |
| Z-Axis Stroke | 820mm |
SPINDLE |
|
| Spindle Speed | 20000(r.p.m) |
| Spindle Taper | Vertical |
TOOLS |
|
| Tool changer format | Disc type |
| Tool specification | BBT40 |
| Tool capacity | 24 pcs |
| Tool change time | 2ses |
MOVING SPEED |
|
| X-Axis Moving Speed | 40m/min |
| Y-Axis Moving Speed | 40m/min |
| Z-Axis Moving Speed | 30m/min |
| Feeding Speed | 20000mm/min |
POWER OF MOTOR |
|
| Spindle Driven Motor | 20kw |
| X / Y / Z Driven Motor | 3.2x2/3.2/3.2kw |
LUBRICATING SYSTEM |
|
| Lubricating System | Automative lubricating |
| Cooling System | Water cooling system |
PRECISION |
|
| Position Precisionof X Axis | 0.06 mm |
| Position Precision of Y / Z Axis | 0.05 mm |
| Repeating Precision (X / Y / Z) | 0.05 mm |
SIZE OF MACHINE |
|
| Power requirements | 3Φ380V 50HZ |
| Operation System | SIEMENS |
| Height | 3600 mm |
| Area | 5200*4600mm +1500mm |
| Weight | 20t |
