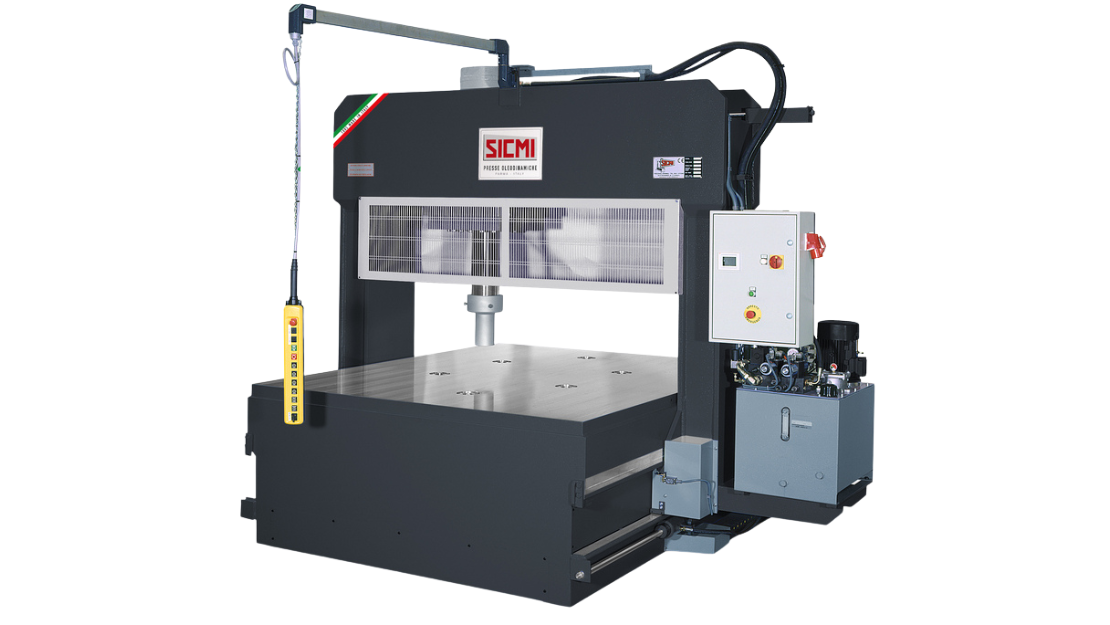

1. Designed for high-precision sheet metal straightening and deformation
2. Energy-efficient system with reduced hydraulic oil consumption
3. Electric movements for millimetric positioning without moving the workpiece
4. Hydraulic master cylinder with power accumulator for optimized performance
5. Laser detection system to identify deformation points automatically
6. Automatic positioning to targeted working areas
7. Wireless remote control for precise and safe operation
| Specification | PMM 150MC | PMM 150MD | PMM 200MC | PMM 200MD | PMM 200ME | PMM 300MD | PMM 300ME | PMM 300MT | PMM 400ME | PMM 400MT | PMM 500ME | PMM 600ME |
| Tonnage | 150 | 150 | 200 | 200 | 200 | 300 | 300 | 300 | 400 | 400 | 500 | 600 |
| A | 2500 | 2500 | 2600 | 2600 | 2600 | 2600 | 2600 | 2600 | 2600 | 2600 | 3000 | 3000 |
| B | 2350 | 2900 | 2400 | 2950 | 3550 | 3100 | 3550 | 4000 | 4000 | 4500 | 5000 | 5000 |
| C | 2000 | 2500 | 2000 | 2500 | 3000 | 3000 | 4000 | 5000 | 4000 | 5000 | 5000 | 6000 |
| D | 1550 | 2050 | 1550 | 2050 | 2550 | 2050 | 2550 | 3050 | 2550 | 3050 | 2550 | 2550 |
| E | 750 | 750 | 750 | 750 | 750 | 700 | 700 | 700 | 700 | 700 | 700 | 700 |
| F | 800 | 800 | 800 | 800 | 800 | 700 | 700 | 700 | 700 | 700 | 700 | 700 |
| G* | 60 | 60 | 80 | 80 | 80 | 80 | 80 | 80 | 90 | 90 | 90 | 90 |
| X | 1000 | 1400 | 1000 | 1450 | 1900 | 1300 | 1800 | 2200 | 1800 | 2200 | 1700 | 2200 |
| O | 1300 | 1600 | 1300 | 1600 | 2000 | 2000 | 2800 | 3600 | 2900 | 3600 | 3600 | 4600 |
| Cylinder Stroke | 500 | 500 | 500 | 500 | 500 | 500 | 500 | 500 | 500 | 500 | 500 | 500 |
| Approach Speed | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 18 | 18 |
| Working Speed | 3 | 3 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 3 | 3 |
| Power (kW) | 4 | 4 | 4 | 4 | 4 | 7.5 | 7.5 | 7.5 | 7.5 | 7.5 | 15 | 22 |
| Weight (kg) | 4300 | 5200 | 5000 | 6000 | 8400 | 10100 | 13400 | 19200 | 17000 | 21000 | 32000 | 35000 |
| Weight with Plate (kg) | 5850 | 7750 | 6600 | 9000 | 12800 | 13600 | 19150 | 28800 | 22700 | 30100 | 42000 | 46000 |
