The APEC SK Series is a 5-Axis High-Speed Gantry Machining Center designed for high-speed aerospace aluminum machining. Its U-shaped structure, linear motor-driven X/Y axes, and double ball screw-driven Z-axis provide outstanding rigidity, precision, and dynamic performance for simultaneous 5-axis machining.
Equipped with a 24,000 rpm high-speed spindle, the SK Series delivers exceptional machining efficiency and surface quality while offering a 50% space-saving design, making it an ideal solution for manufacturers seeking high productivity with a compact machine footprint.

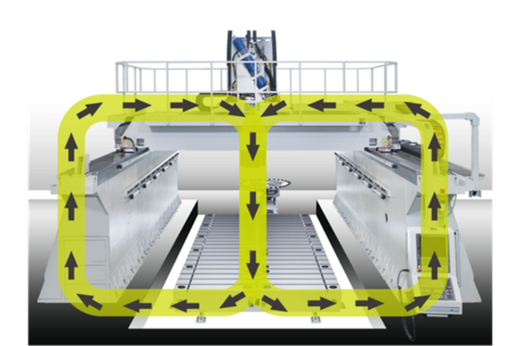

Symmetrical geometry design with Box-in-Box structure of cross beam and saddle. Excellent force flow design decreases thermal deformation. High accuracy during high-speed machining can be performed.
Ram equipped with honeycomb structure performs the best balancing design and better geometry.
A high-pressure pump with groups of powerful nozzles can quickly remove the chips.
A dual-chip removal system with a large-capacity water tank could make coolant and chip removal stable.
5-axis machining accuracy difference is below 0.01mm.
Ultra-high-speed and power spindle with the best material removal rate.
All three axes are driven by dual linear motors.
Max. feedrate：60 m/min
Max. acceleration：5 m/sec²
Different angle heads could be mounted to match various applications and it is best for machining in narrow spaces.
Movable beam design of top-roof cover could prevent the spreading of chips and coolant liquid.
| MODEL | 2520/40/50/60/80 | 3020/40/50/60/80 | |||
|---|---|---|---|---|---|
| TRAVEL | |||||
| X-axis | 2,000/4,000/5,000/6,000/8,000 | 2,000/4,000/5,000/6,000/8,000 | |||
| Y-axis | 2,500 | 3,000 | |||
| Z-axis | 1,000 | ||||
| X.Y.Z axis acceleration | 5 | ||||
| Rapid traverse | XY=60 / Z=40 | ||||
| SPINDLE | |||||
| Spindle taper | HSK63A / HSK100A | ||||
| Spindle Speed | 1200/24000 | ||||
| Spindle power | 42 ~ 78 | ||||
| Spindle torque | 67 ~ 302 | ||||
