SK series
5-Axis High Speed Gantry Machining Center
- U-shape structure
- X/Y axis driven by linear motor
- Z-axis driven by double ball screws
- Space saving due to gantry structure

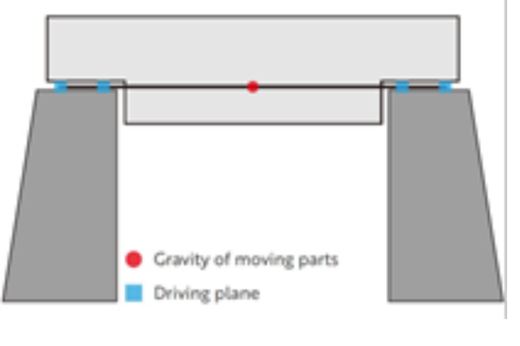

Zero distance between the gravity of the moving parts and the drivingplane makes the gravity center closer to the driving plane. Themachining stability could then be improved and the best machinerigidity could be ensured.

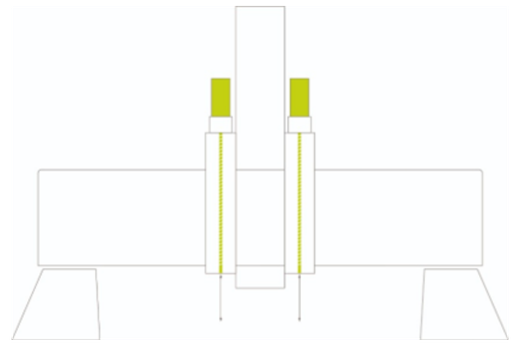

Double ball screws in Z-axis and twin servo motor driving provide high dynamics and stable cutting accuracy
A high-pressure pump with groups of powerful nozzles can quickly remove the chips.
1. A dual-chip removal system with a large-capacity water tank could make coolant and chip removal stable and efficient.
Movable beam design of top-roof cover could prevent spreading of chips and coolant liquid.
Different angle heads could be mounted to match various applications and it is best for machining in narrow spaces.
| MODEL | 2530/40/50/60/80 | 3240/50/60/80 | 4050/60/80/100+ | ||||
|---|---|---|---|---|---|---|---|
| TRAVEL | |||||||
| X-axis | 3,000/4,000/5,000/6,000/8,000 | 4,000/5,000/6,000/8,000 | 5,000/6,000/8,000/10,000+ | ||||
| Y-axis | 2,500 | 3,200 | 4,000 | ||||
| Z-axis | 1,200/1,500/2,000 | ||||||
| X.Y.Z axis acceleration | XYZ=60 | ||||||
| Rapid traverse | (05-08-) | ||||||
| SPINDLE | |||||||
| Spindle taper | HSK63A / HSK100A | ||||||
| Spindle Speed | 12,000 ~ 24,000 | ||||||
| Spindle power | 42 ~ 78 | ||||||
| Spindle torque | 67 ~ 302 | ||||||
5-axis Horizontal Machining Center HS700...
5-axis Horizontal Machining Center HS140...

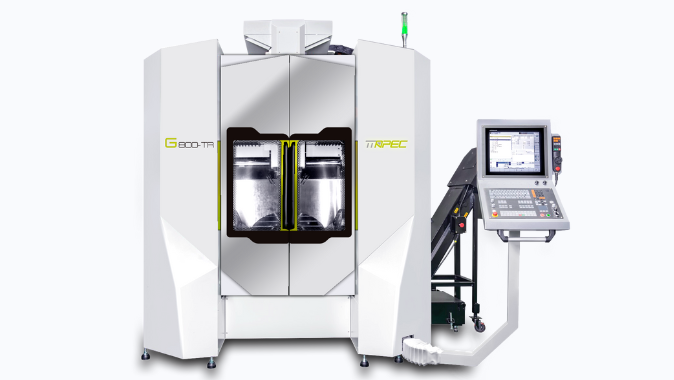

5-axis Gantry Vertical Machining Center ...

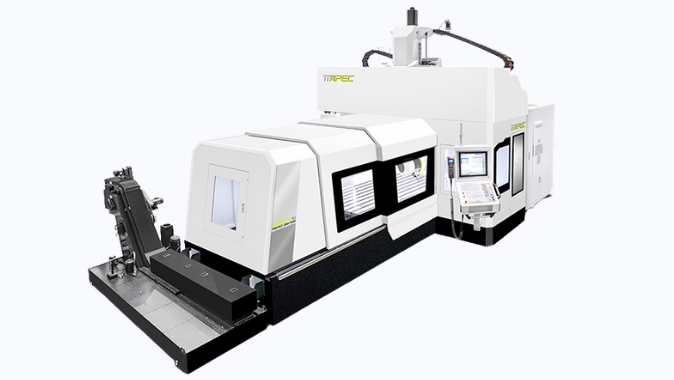

5-axis High Speed Double Column Machinin...
