1. Rigid one-piece structure for stable machining and reduced vibration.
2. Large rotary table with strong clamping for heavy workpieces.
3. Vertical layout allows chips to fall naturally, improving tool life and surface quality.
4. High-torque spindle optimized for tough materials and deep cutting.
5. Multi-operation capability (turning, facing, boring, drilling) in one setup.
6. Operator-friendly access for safer loading and easier maintenance.
7. Ideal for oil & gas components, flanges, rings, and large industrial parts.
| Specification | |||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Unit | VT-1216 /1616 | VT-1623/2023 | VT-2028/2528 | VT-2534/3034 |
VT-4050 | VT-5060 | VT-6070 | ||||||||
| Capacity | Table diameter | mm (inch) | Φ 1250 (49.21) | Φ 2000 (78.74) | Φ 2000 (78.74) | Φ 2500 (98.42) | Φ 4000 (157.48) | Φ 5000 (196.85) | |||||||
| {Φ 1600 (62.99)} | {Φ 2000 (78.74)} | {Φ 2500 (98.42)} | {Φ 2500 (98.42)} | {Φ 3000 (118.11)} | |||||||||||
| Max. swing diameter | mm (inch) | Φ 1800 (70.86) | Φ 2300 (90.55) | Φ 2800 (110.23) | Φ 2800 (110.23) | Φ 3400 (133.85) | Φ 5000 (196.85) | Φ 6000 (236.22) | |||||||
| Max. turning diameter | mm (inch) | Φ 1600 (62.99) | Φ 2300 (90.55) | Φ 2800 (110.23) | Φ 2800 (110.23) | Φ 3400 (133.85) | Φ 5000 (196.85) | Φ 6000 (236.22) | |||||||
| Max. turning height | mm (inch) | 1300 (51.18) | 1300 (51.18) | 1700 (66.92) | 1700 (66.92) | 1700 (66.92) | customized | customized | |||||||
| Max. allowable workpiece weight | kg (Ib) | 5000 (11023.11) | 8000 (17636.98) | 10000 (22046.22) | 10000 (22046.22) | 15000 (33069.33) | customized | customized | |||||||
| {8000 (17636.98)} | {10000 (22046.22)} | {15000 (33669.33)} | {15000 (33669.33)} | {20000 (44092.45)} | |||||||||||

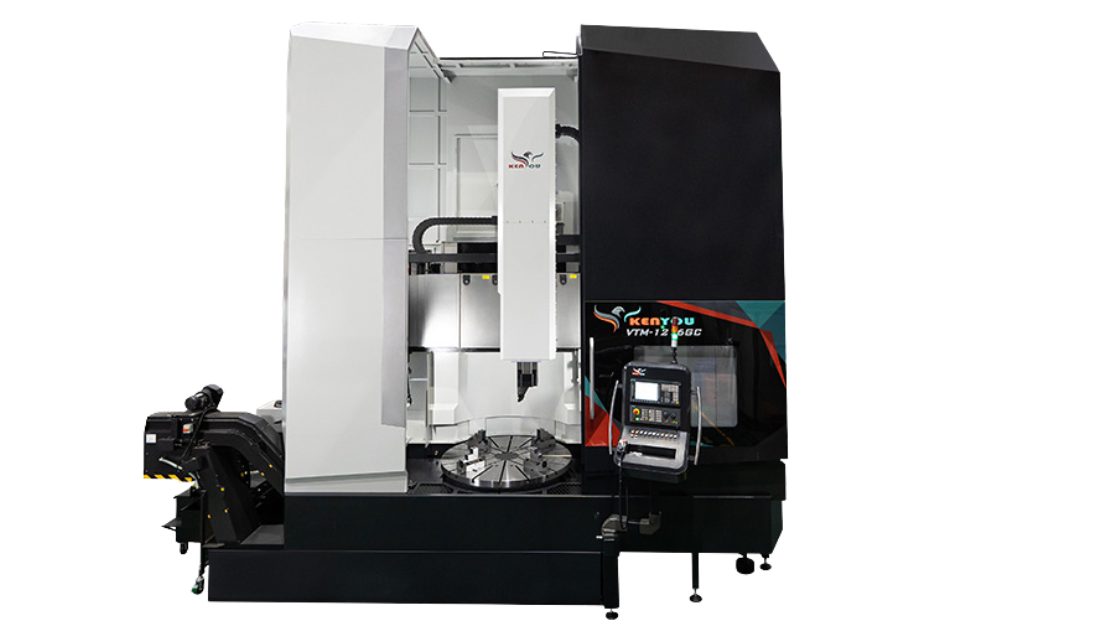

Vertical Turning Lathe ...

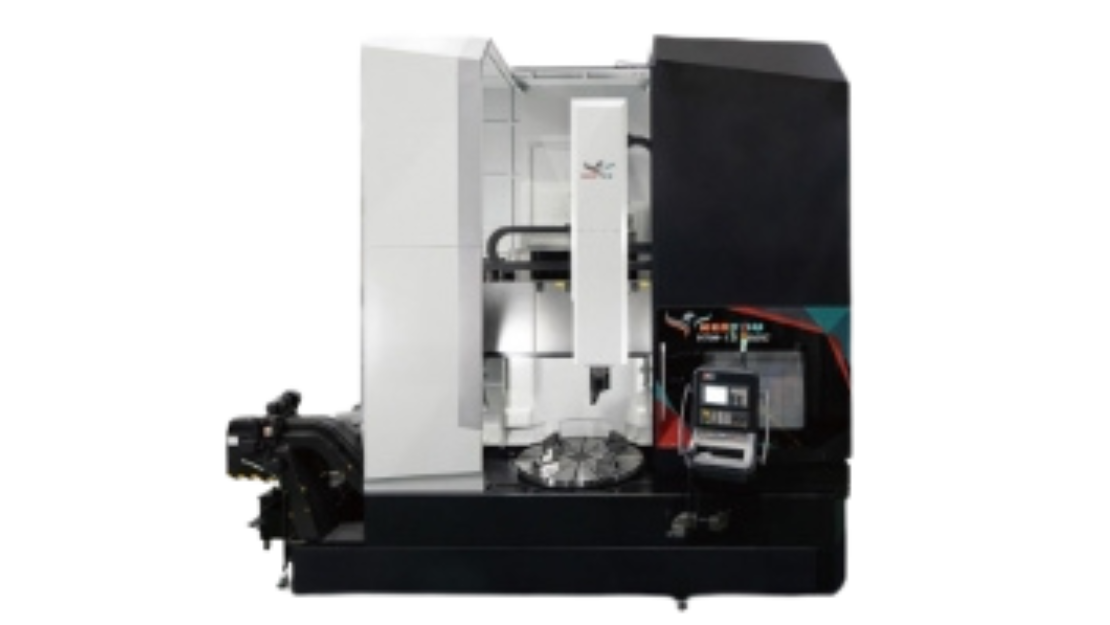

Vertical Turning Milling Lathe ...
