OCD 2040

Feature

The PALMARY OCD CNC Cylindrical Grinding Machine is designed for high-precision external and internal grinding, combining rigid construction, precision spindle systems, and hydrostatic bearing technology for stable, accurate, and reliable machining.

Key Features

CNC Series – Precise and efficient grinding control.
Rigid Work Spindle Head – High stability and grinding accuracy.
Precision Wheel Spindle – High wear resistance and long-term accuracy.
Hydrostatic Bearing – Minimizes vibration and prevents metal-to-metal contact.
Automatic Tailstock Lubrication – Maintains smooth and accurate operation.
Versatile Grinding – External, internal (optional), and face grinding.
Distance Between Centers: 400 / 600 / 1000 mm
Swing Over Table: Ø320 mm
Max. External Grinding Dia.: Ø300 mm

Product Introduction

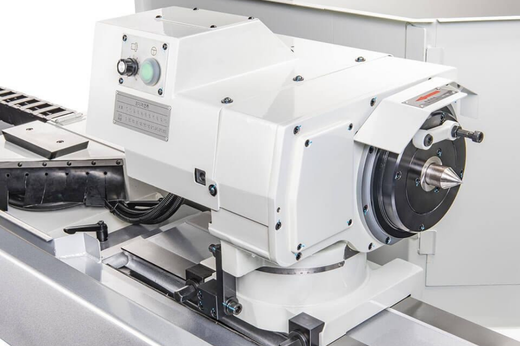

Rigid work spindle head

The rigid constructed spindle head employs high precision bearings assuring maximum spindle stability. It guarantess outstanding accuracy for external and internal diameter grinding (opt.) and face grinding.

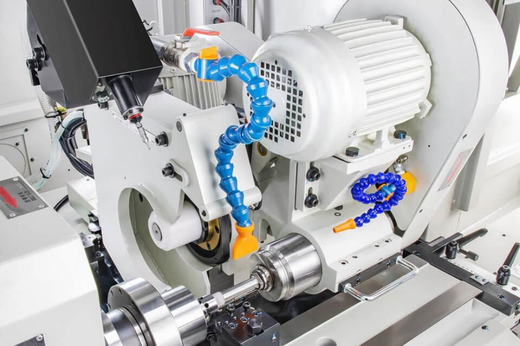

Precision wheel spindle

The grinding wheel spindle is precisely machined form high quality alloy steel, normalized, tempered, carburized and sub-zero treated, precisely ground and mirror-effect treated. Non-deformation, maximum wear resistance and lifetime accuracy are assured.

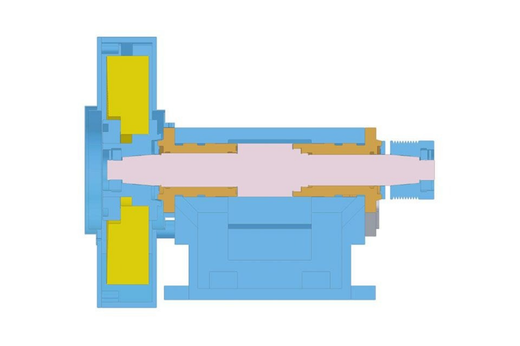

Wheel spindle hydro-static bearing

The hybrid hydro-static bearings are used for the wheel spindle. Metal-to-metal contact will never occur with these highly rigid bearings design and also avoid vibration.

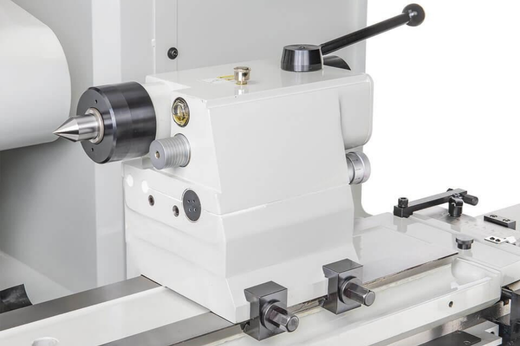

Tailstock lubrication system

An automatic oil bath lubrication system has been provided for the tailstock to maintain high-level accuracy. An oil level gauge enables quick oil status checking.

Product Specifications

Model	OCD-3225CAM
MODEL
CAPACITY
Swivel over table	220 mm
Distance between centers	400 mm
Max. external grinding diameter	200 mm
Max. load of centers	60 kg
GRINDING WHEEL
O.D. x width x I.D.	Ø355 x 38~50 x Ø127 mm
Linear velocity	33 M/s
TABLE
Rapid speed	10 m/min
Max stroke	560 mm
Min. setting unit	0.001 mm (0.0001 mm)
Swivel angle	(-3° ~ +10°)
WORK SPINDLE HEAD
Swivel angle	(-30° ~ +90°)
Center taper	MT No. 3
Spindle speed (variable)	10~300 rpm
Max. load with tool holder	15 kg (max length: 100 mm)
TAILSTOCK
Center taper	MT No. 3
Stroke	25 mm
Fine adjustment range	±0.03 mm
POWER
Fanuc	220V control circuit, 24VDC
MOTOR
Wheel spindle	3.7 kW
Work spindle	0.37 kW (frequency)
Workhead spindle	0.75 kW (AC servo motor)
Table feed (AC Servo Motor)	1.2 kW
Hydraulic pump	0.75 kW
Wheel spindle lubrication pump	0.37 kW (4P)
Coolant pump	0.18 kW (2P)
Ballscrew lubrication	Auto lubricator (LUBE)
Internal grinding (optional)	Yes
Internal grinding spindle (optional)	0.37 kW
TANK
Wheel spindle lubricant tank	28 L
Lubrication tank	22 L
Hydraulic tank	22 L
Coolant tank	120 L
Ballscrew lubrication tank	0.7 L
MACHINE WEIGHT
Net weight	2350 kg
